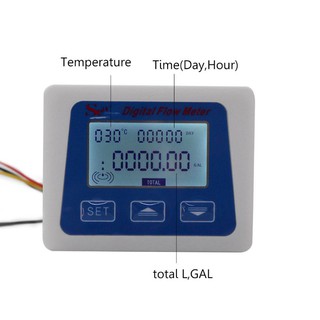

Digital LCD display Water flow sensor meter flowmeter totameter Temperature time record With G1/2” flow sensor

Feature :
Very easy to Install
Product with high sealing performance
High quality.
With backlight

Package included:
1 x Digital Flow Meter
1 x G1/2 Flow sensor
1 set of mounting accessories


In the use of battery interface power supply, in order to save energy and improve battery life, the system is unmanned
And if there is no water flow, it will go to sleep. The display will automatically jump to the sleep state
The main interface and keep the display function. Automatically wakes up to the metering state when water flows through.
b, the system reset
There is a RESET symbol on the back of the board with two contacts next to it. Two contacts after the system is powered on
Short-circuit to about 2 seconds, the system will restore the factory settings, clear the total time and total water consumption.

G1/2 flow sensor :
Water pressure resistance> 1.75MPa
Flow range 1-25L / min

With Temperature Sensor

This Flow Meter Only can use this Flow Sensor , Because this Flow sensor is Customized version Low power consumption ,If use other Flow Sensor not Low power consumption, the battery only can use two days.
